Reproduce an Interface

Objective

Reproduce the user interface for part of an app.

Xcode
the SF Symbols App installed on your computer, also for reference
your copy of SwiftUI Views Mastery, downloaded to your computer, so you can look up examples as needed

I will know I've been highly successful when...

I've made a rough plan where I have identified how various structures might be used: VStack, HStack, ZStack, Image, et cetera

Note

This plan must be shared on Notion in a portfolio post prior to writing code.

Note

If you complete the work across multiple days, please make multiple portfolio posts to share your progress.

I have made use of custom structures to reduce the use of repetitive code – in other words, I've applied abstraction
I authored code that is well-formatted and easy to read
I used source control well by committing and pushing my work to a remote on GitHub at regular intervals

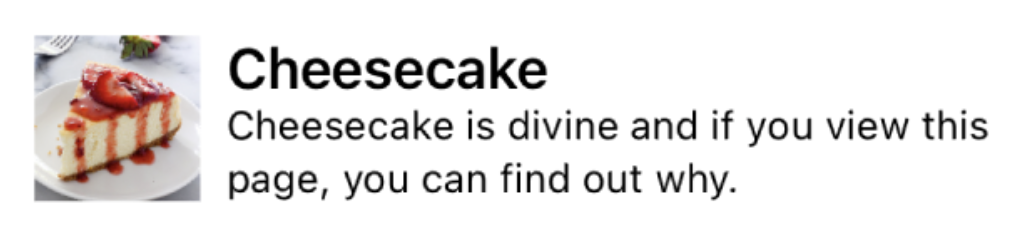

Given an interface you wish to reproduce:

Screen Shot 2022-11-15 at 1.06.01 PM.png|300

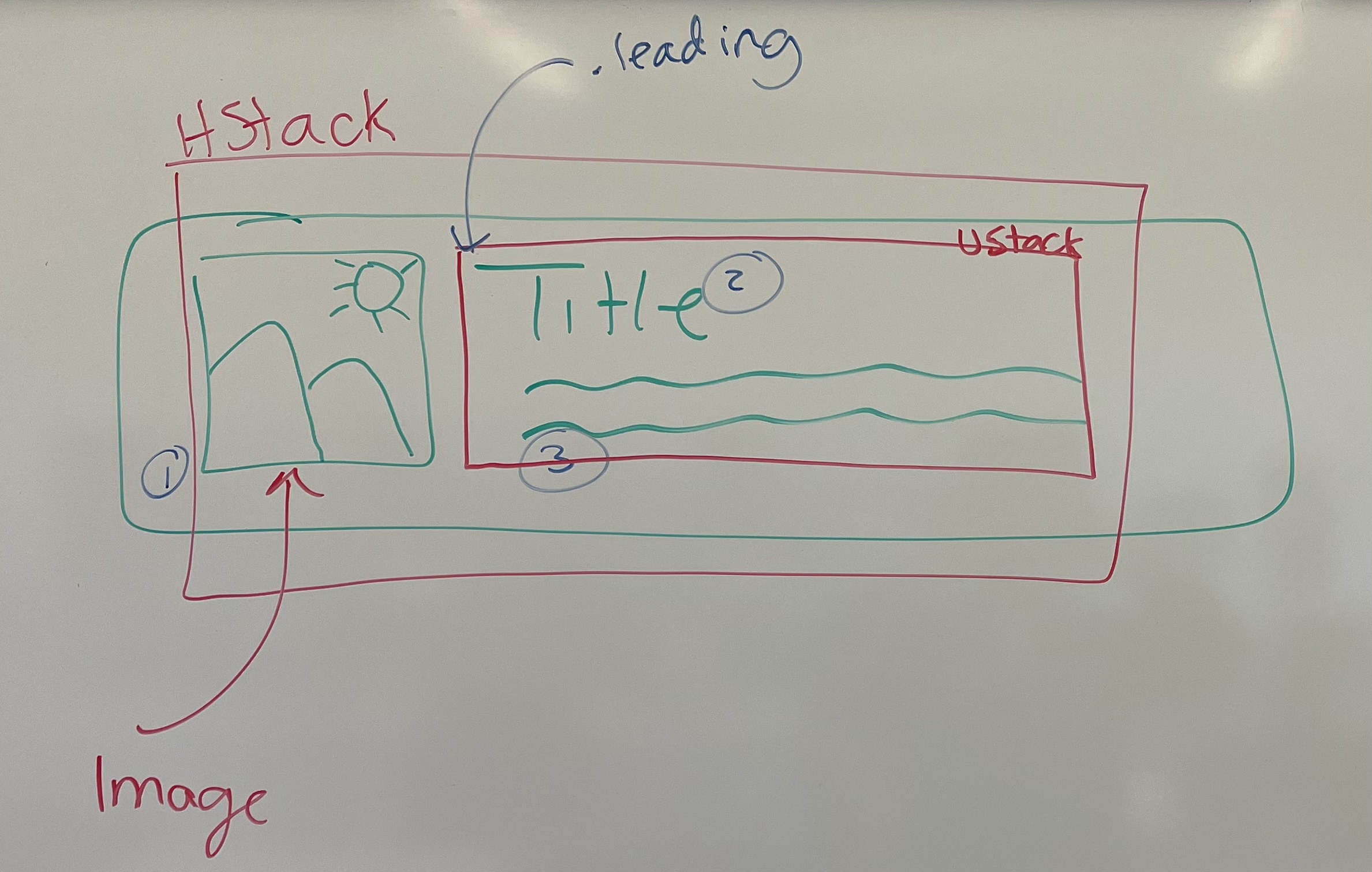

Here is what a rough plan to reproduce part of an interface might look like:

IMG_1565.jpg|400

The rest of the task is to reproduce an app's interface, like you did the Stopwatch tab in the Clock app.

See Mr. Gordon when you are ready to begin this task.

You will select or be assigned an interface to reproduce. This will be sent to you by email.

Successful completion of this task is great initial evidence for learning goals 1, 2, 3, and 5.
